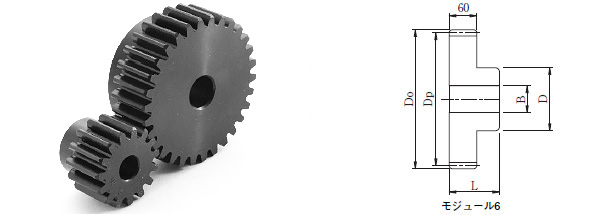

■ 平歯車 モジュール６ / メーカー別相当品型式対照表 |
| 三蔵型式 | 価格 | 小原歯車工業KHK | 片山チェンKANA | 歯数 | 歯先円 直径 Do |
基準円 直径 Dp |
軸穴径 B(H7) |
ボス径 D |
全長 L |
| Ｍ６ＣＢ１２ | 2,782 | ＳＳ６－１２ | Ｍ６Ｂ１２ | 12 | 84.0 | 72.0 | 25 | 55 | 88 |
| Ｍ６ＣＢ１３ | 3,023 | ＳＳ６－１３ | Ｍ６Ｂ１３ | 13 | 90.0 | 78.0 | 25 | 58 | |
| Ｍ６ＣＢ１４ | 3,224 | ＳＳ６－１４ | Ｍ６Ｂ１４ | 14 | 96.0 | 84.0 | 25 | 60 | |
| Ｍ６ＣＢ１５ | 3,640 | ＳＳ６－１５ | Ｍ６Ｂ１５ | 15 | 102.0 | 90.0 | 25 | 70 | |
| Ｍ６ＣＢ１６ | 4,030 | ＳＳ６－１６ | Ｍ６Ｂ１６ | 16 | 108.0 | 96.0 | 25 | 75 | |
| Ｍ６ＣＢ１７ | 4,082 | ＳＳ６－１７ | Ｍ６Ｂ１７ | 17 | 114.0 | 102.0 | 25 | 78 | |
| Ｍ６ＣＢ１８ | 4,498 | ＳＳ６－１８ | Ｍ６Ｂ１８ | 18 | 120.0 | 108.0 | 25 | 80 | |
| Ｍ６ＣＢ１９ | 4,589 | ＳＳ６－１９ | Ｍ６Ｂ１９ | 19 | 126.0 | 114.0 | 25 | 90 | |
| Ｍ６ＣＢ２０ | 5,051 | ＳＳ６－２０ | Ｍ６Ｂ２０ | 20 | 132.0 | 120.0 | 25 | 100 | |
| Ｍ６ＣＢ２１ | 5,590 | ＳＳ６－２１ | Ｍ６Ｂ２１ | 21 | 138.0 | 126.0 | 28 | 105 | |
| Ｍ６ＣＢ２２ | 5,675 | ＳＳ６－２２ | Ｍ６Ｂ２２ | 22 | 144.0 | 132.0 | 28 | 110 | |
| Ｍ６ＣＢ２３ | 6,286 | ＳＳ６－２３ | Ｍ６Ｂ２３ | 23 | 150.0 | 138.0 | 28 | 115 | |
| Ｍ６ＣＢ２４ | 6,409 | ＳＳ６－２４ | Ｍ６Ｂ２４ | 24 | 156.0 | 144.0 | 28 | 120 | |
| Ｍ６ＣＢ２５ | 6,942 | ＳＳ６－２５ | Ｍ６Ｂ２５ | 25 | 162.0 | 150.0 | 28 | 125 | |
| Ｍ６ＣＢ２６ | 7,547 | ＳＳ６－２６ | Ｍ６Ｂ２６ | 26 | 168.0 | 156.0 | 28 | 130 | |
| Ｍ６ＣＢ２７ | 7,664 | ＳＳ６－２７ | Ｍ６Ｂ２７ | 27 | 174.0 | 162.0 | 28 | 135 | |
| Ｍ６ＣＢ２８ | 8,580 | ＳＳ６－２８ | Ｍ６Ｂ２８ | 28 | 180.0 | 168.0 | 28 | 140 | |
| Ｍ６ＣＢ３０ | 9,718 | ＳＳ６－３０ | Ｍ６Ｂ３０ | 30 | 192.0 | 180.0 | 30 | 150 | |
| Ｍ６ＣＢ３２ | 10,803 | ＳＳ６－３２ | Ｍ６Ｂ３２ | 32 | 204.0 | 192.0 | 30 | 150 | 83 |
| Ｍ６ＣＢ３４ | 11,856 | ＳＳ６－３４ | Ｍ６Ｂ３４ | 34 | 216.0 | 204.0 | 30 | 150 | |
| Ｍ６ＣＢ３５ | 14,853 | ＳＳ６－３５ | Ｍ６Ｂ３５ | 35 | 222.0 | 210.0 | 30 | 150 | |
| Ｍ６ＣＢ３６ | 15,171 | ＳＳ６－３６ | Ｍ６Ｂ３６ | 36 | 228.0 | 216.0 | 30 | 150 | |
| Ｍ６ＣＢ３８ | 15,672 | ＳＳ６－３８ | Ｍ６Ｂ３８ | 38 | 240.0 | 228.0 | 30 | 150 | |
| Ｍ６ＣＢ４０ | 18,174 | ＳＳ６－４０ | Ｍ６Ｂ４０ | 40 | 252.0 | 240.0 | 30 | 150 |
＜追加工は、三蔵にご下命ください＞
