チェーン・ベルト・歯車伝導

PXベルト伝動　株式会社 椿本チエイン

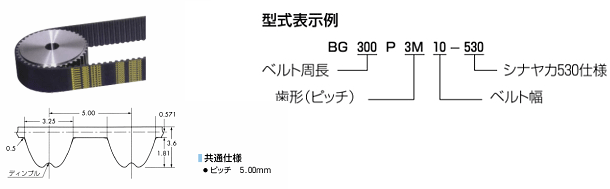

■ PXベルト　P5M形

PXベルト伝動　株式会社 椿本チエイン

型式 周長(mm) 歯数 価格（円）
ベルト幅(mm)
10 15 25
BG175P5M 175 35 704 1,106 1,697
BG215P5M 215 43 704 1,106 1,697
BG225P5M 225 45 704 1,106 1,697
BG255P5M 255 51 704 1,106 1,697
BG260P5M 260 52 745 1,093 1,806
BG275P5M 275 55 796 1,150 1,921
BG295P5M 295 59 852 1,208 2,011
BG300P5M 300 60 852 1,225 2,045
BG310P5M 310 62 860 1,242 2,077
BG320P5M 320 64 860 1,259 2,104
BG325P5M 325 65 860 1,266 2,119
BG340P5M 340 68 869 1,282 2,177
BG350P5M 350 70 869 1,309 2,194
BG370P5M 370 74 894 1,340 2,242
BG375P5M 375 75 911 1,349 2,258
BG400P5M 400 80 918 1,415 2,359
BG420P5M 420 84 944 1,458 2,424
BG425P5M 425 85 944 1,464 2,441
BG430P5M 430 86 961 1,481 2,450
BG440P5M 440 88 968 1,506 2,483
BG450P5M 450 90 968 1,523 2,483
BG475P5M 475 95 1,018 1,556 2,573
BG490P5M 490 98 1,026 1,580 2,623
BG500P5M 500 100 1,026 1,596 2,623
BG515P5M 515 103 1,067 1,613 2,681
BG520P5M 520 104 1,067 1,630 2,681
BG525P5M 525 105 1,067 1,640 2,722
BG530P5M 530 106 1,067 1,655 2,722
BG545P5M 545 109 1,067 1,680 2,738
BG550P5M 550 110 1,067 1,680 2,738
BG555P5M 555 111 1,084 1,680 2,755
BG560P5M 560 112 1,110 1,697 2,772
BG565P5M 565 113 1,110 1,705 2,782
BG570P5M 570 114 1,110 1,714 2,789
BG575P5M 575 115 1,110 1,722 2,806
BG595P5M 595 119 1,116 1,746 2,846
BG600P5M 600 120 1,116 1,762 2,846
BG605P5M 605 121 1,133 1,772 2,887
BG625P5M 625 125 1,150 1,772 2,921
BG635P5M 635 127 1,150 1,789 2,938
BG645P5M 645 129 1,175 1,812 2,971
BG650P5M 650 130 1,175 1,837 2,988
BG670P5M 670 134 1,208 1,854 3,053
BG675P5M 675 135 1,217 1,854 3,053
BG690P5M 690 138 1,208 1,854 3,053
BG695P5M 695 139 1,225 1,862 3,103
BG700P5M 700 140 1,225 1,879 3,120
BG710P5M 710 142 1,259 1,879 3,136
BG725P5M 725 145 1,266 1,894 3,154
BG730P5M 730 146 1,276 1,921 3,169
BG740P5M 740 148 1,276 1,921 3,169
BG750P5M 750 150 1,276 1,927 3,194
BG765P5M 765 153 1,309 1,944 3,218
BG770P5M 770 154 1,315 1,954 3,235
BG775P5M 775 155 1,315 1,972 3,252
BG780P5M 780 156 1,315 1,978 3,268
BG800P5M 800 160 1,325 1,986 3,286
BG810P5M 810 162 1,332 2,011 3,301
BG830P5M 830 166 1,340 2,011 3,335
BG835P5M 835 167 1,349 2,011 3,353
BG850P5M 850 170 1,374 2,011 3,377
BG865P5M 865 173 1,382 2,045 3,401
BG880P5M 880 176 1,391 2,059 3,427
BG900P5M 900 180 1,398 2,077 3,467
BG905P5M 905 181 1,398 2,104 3,467
BG920P5M 920 184 1,408 2,119 3,500
BG940P5M 940 188 1,424 2,137 3,566
BG950P5M 950 190 1,441 2,152 3,583
BG965P5M 965 193 1,458 2,194 3,583
BG985P5M 985 197 1,464 2,210 3,632
BG1000P5M 1000 200 1,481 2,225 3,666
BG1025P5M 1025 205 1,498 2,258 3,715
BG1050P5M 1050 210 1,523 2,258 3,782
BG1060P5M 1060 212 1,523 2,285 3,782
BG1090P5M 1090 218 1,562 2,317 3,832
BG1125P5M 1125 225 1,596 2,359 3,898
BG1150P5M 1150 230 1,613 2,390 3,997
BG1160P5M 1160 232 1,613 2,424 4,014
BG1180P5M 1180 236 1,640 2,474 4,073
BG1195P5M 1195 239 1,663 2,500 4,129
BG1220P5M 1220 244 1,680 2,542 4,180
BG1225P5M 1225 245 1,697 2,573 4,229
BG1250P5M 1250 250 1,722 2,582 4,328
BG1260P5M 1260 252 1,739 2,590 4,362
BG1270P5M 1270 254 1,746 2,648 4,394
BG1295P5M 1295 259 1,762 2,681 4,454
BG1350P5M 1350 270 1,837 2,789 4,660
BG1390P5M 1390 278 1,871 2,872 4,800
BG1420P5M 1420 284 1,894 2,921 4,907
BG1490P5M 1490 298 1,986 3,070 5,089
BG1530P5M 1530 306 2,036 3,136 5,221
BG1550P5M 1550 310 2,059 3,178 5,288
BG1595P5M 1595 319 2,119 3,268 5,437
BG1615P5M 1615 323 2,137 3,301 5,495
BG1675P5M 1675 335 2,202 3,433 5,701
BG1700P5M 1700 340 2,225 3,485 5,784
BG1800P5M 1800 360 2,359 3,666 6,008
BG1870P5M 1870 374 2,441 3,815 6,191
BG1910P5M 1910 382 2,483 3,898 6,275
BG1960P5M 1960 392 2,525 3,989 6,397
BG2000P5M 2000 400 2,556 4,046 6,497
BG2080P5M 2080 416 2,648 4,196 6,738
BG2160P5M 2160 432 2,738 4,345 6,952
BG2200P5M 2200 440 2,772 4,410 7,069
BG2645P5M 2645 529 3,278 5,165 8,234
BG3050P5M 3050 610 3,715 5,844 9,270
BG3150P5M 3150 630 3,832 6,008 9,601
BG3930P5M 3930 786 4,620 7,134 11,504
